Hampstead Gardens Spatial Design
A parcel of land at Hampstead Gardens is transformed into a nature-inspired retreat, designed to create a calming and welcoming environment where visitors can relax and reconnect. A natural palette of green tones and dark wood adds warmth, while preserved trees with built-in seating encourage organic interaction with nature.
This unique establishment will consist of seven modular cabins resembling shipping containers, referred to as “pods.” Six pods serve as accommodation rooms, while the service pod functions as a multifunctional hub with a café, reception, and a retail corner showcasing local merchandise.
Rendered Overall Layout, Hampstead Gardens, Overall Layout
The space balances social and private experiences. Communal areas like the BBQ zone foster gathering and conversation, while quieter spots such as the font and hangout areas offer solitude and reflection. Defined pathways and clear signage ensure intuitive wayfinding without disrupting visual harmony.
Sustainability is central to the design. Recycled wood is used for furnishings and structures, and energy-efficient lamp posts provide night-time ambience and visibility. Blending aesthetics, function, and placemaking, the space offers a meaningful retreat that promotes relaxation, connection, and appreciation of nature.
Accommodation Pods

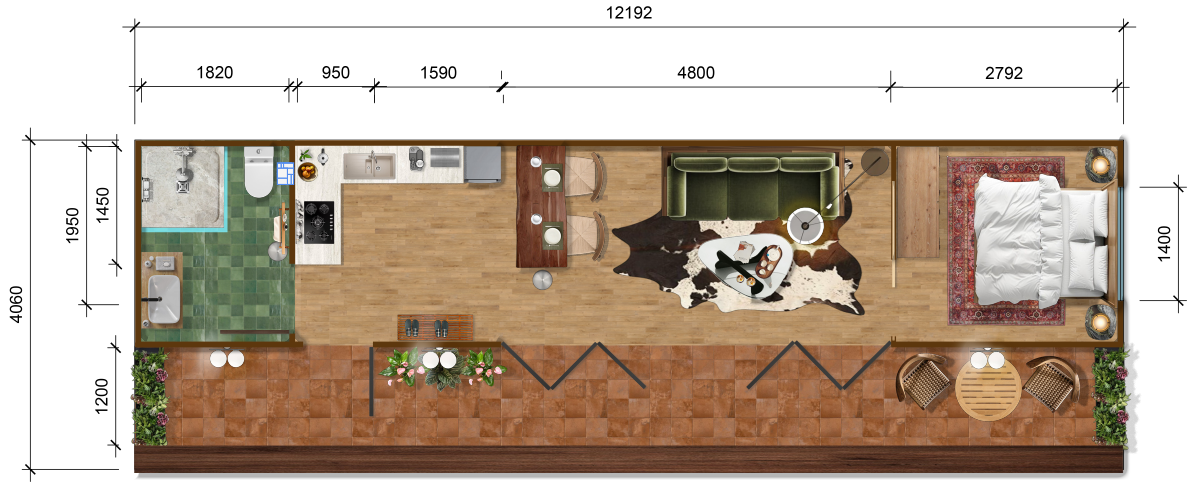

Accommodation Pod 1
Accommodation Pod 1 features a king-sized bed, making it ideal for couples. Designed to reflect the nature-inspired theme, the interior combines different tones of dark wood with green accents, allowing the materials to complement one another. The pod also includes an outdoor seating area on the patio, enhanced by surrounding plants to strengthen the natural ambience.

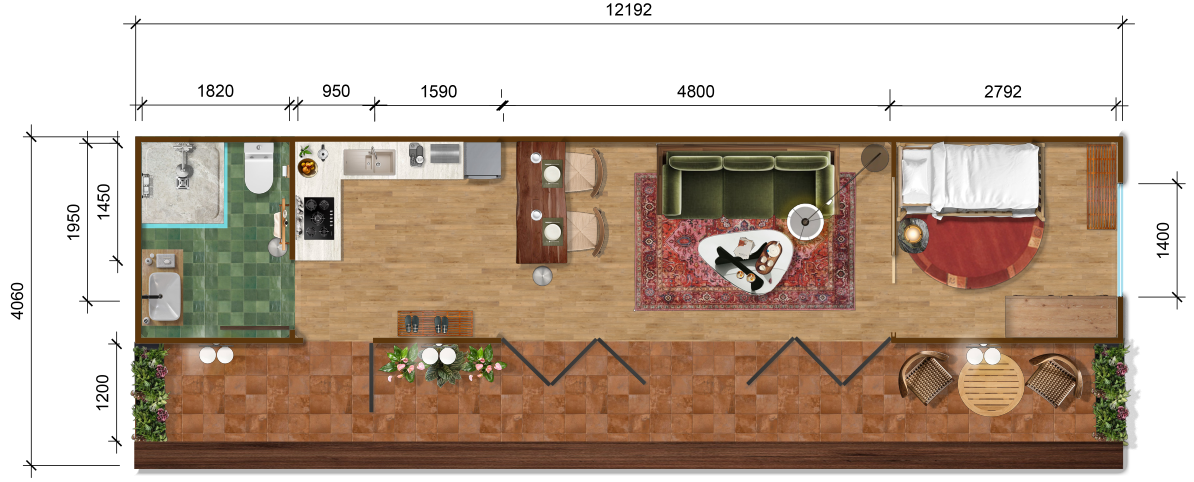

Accommodation Pod 2
Accommodation Pod 2 is furnished with a bunk bed, making it ideal for friends or for those who prefer having their own personal space when sleeping. Reflecting the nature-inspired theme, the interior features varying tones of dark wood paired with green accents, creating a harmonious and complementary look. An outdoor seating area on the patio, surrounded by plants, further enhances the natural ambience.

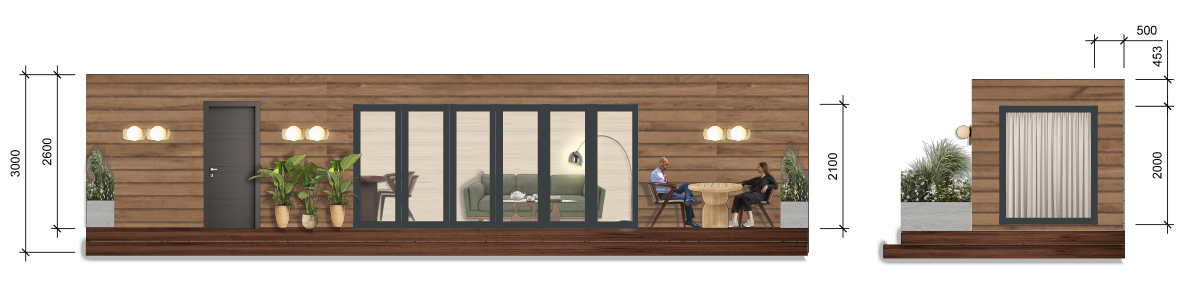

Front & Side Elevation of Accommodation Pod

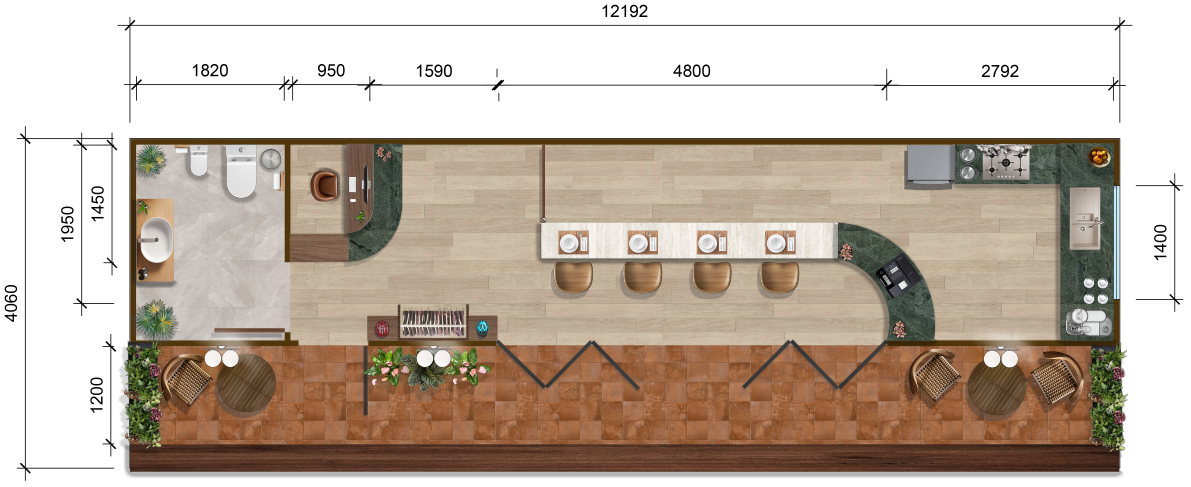

Service Pod
The service pod functions as the central hub of the space, featuring a reception counter where guests can conveniently check in and out of their accommodation pods. A small retail section is included, offering local merchandise such as helmets and apparel to add a sense of local connection. The pod also houses a café with both indoor and outdoor seating. Inside, white bar seats provide a casual dining option, while the outdoor seating area allows guests to enjoy their meals in a natural setting. The material palette further enhances the ambience, with lighter toned wood used for the flooring and dark green marble applied to the reception and café counters, creating a refined contrast that complements the nature inspired theme.
AutoCAD Layout

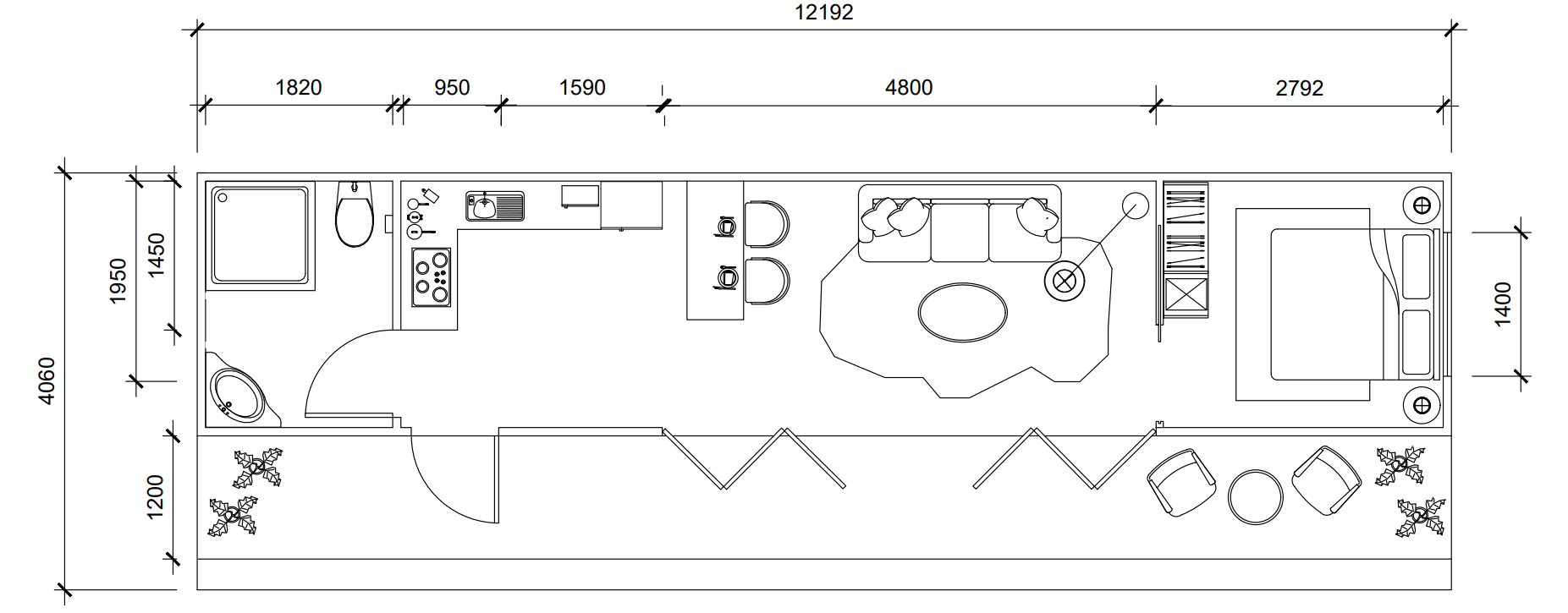

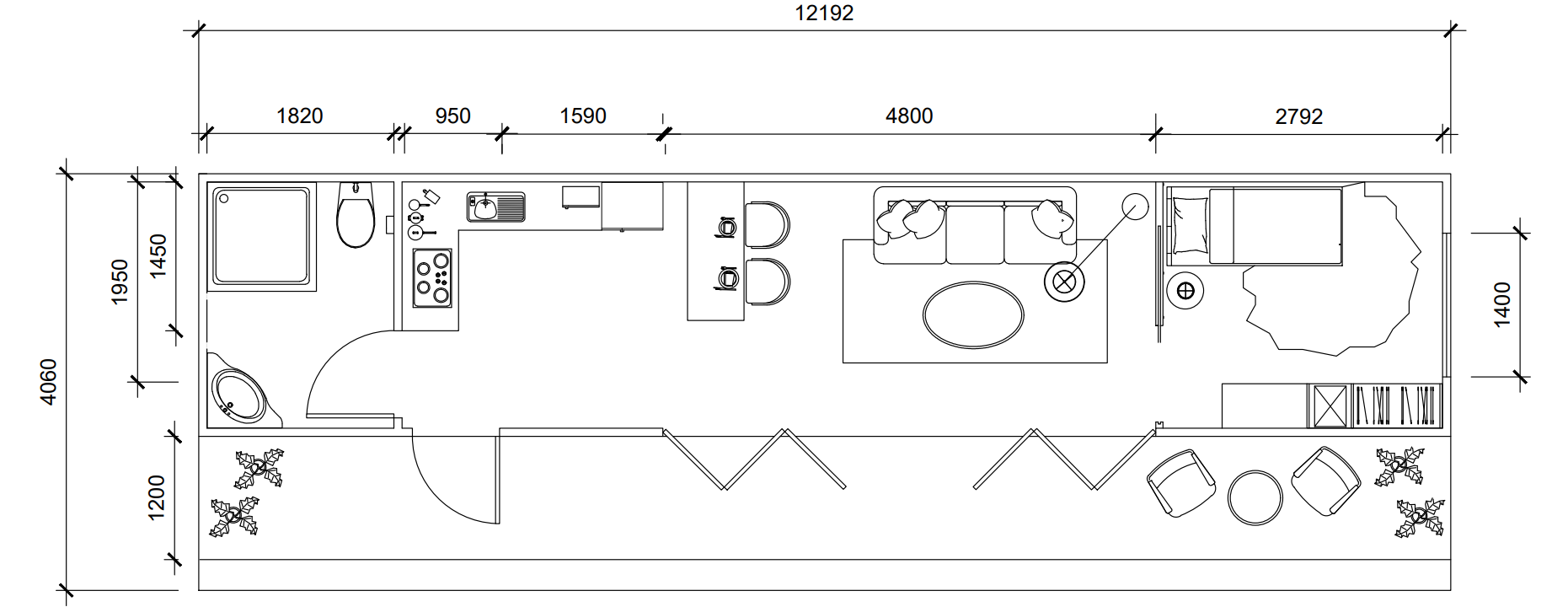

Accommodation Pod 1
Accommodation Pod 2

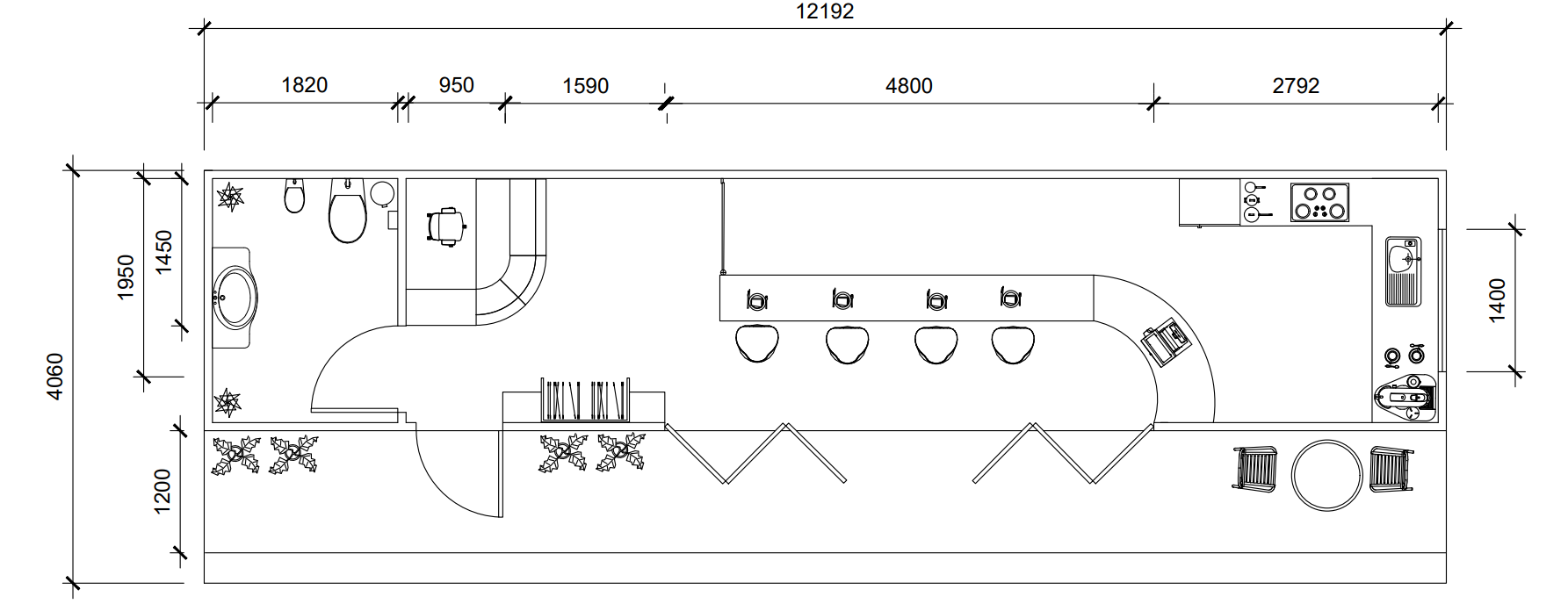

Service Pod
Mood Board
Mood Board of Accommodation Pod
Mood Board of Service Pod
